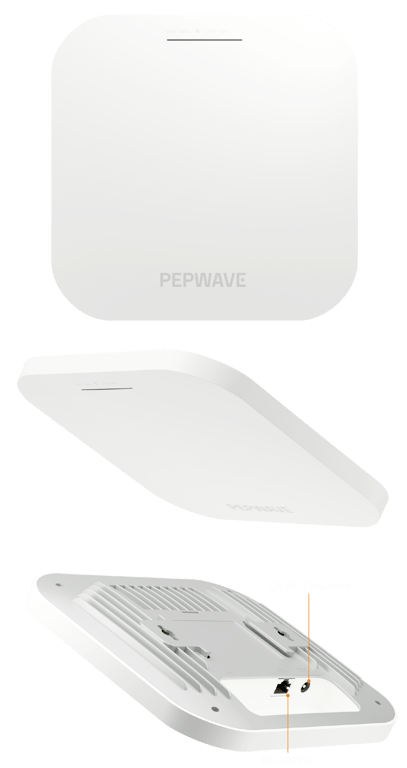

AP One AX
Feature Highlights
Centralized Management
Built-in InControl management allows you to monitor network health, view data usage, and manage SSIDs and radio settings from any web browser—no extra hardware required.
Custom Captive Portals
Includes a ready-to-use captive portal out of the box, with full customization options in InControl for a branded user experience.
Wi-Fi 6 Performance
Delivers 45% faster speeds than Wi-Fi 5, supports 4× more device capacity, and improves power efficiency for connected devices.
Enterprise-Grade Roaming
Supports 802.11k/v/r for seamless and fast roaming across multiple access points.
SD-WAN Integration
Works seamlessly with Peplink SD-WAN ecosystem, offering flexible, powerful, and user-friendly network management.
Featured Solutions
Smart Cities
IoT
Resources
Specification Details
| Ethernet Port | 1x Multigigabit Ethernet |
| Wi-Fi Standard | Wi-Fi 6 |
| Data Rates | 4×4 MU-MIMO 2.4GHz up to 1148Mbps 5GHz: up to 2400Mbps |
| Recommended Concurrent Users Per Radio | |
| Multiple SSIDs | |
| Transmit Power | 2.4GHz: 25dBm 5GHz: 25dBm |
| Antenna | Built-in Omni Antenna |
| Antenna Gain | 5dBi for 2.4GHz 5dBi for 5GHz |
| Enclosure | Plenum-rated, Indoor Plastic |
| Dimensions | 8.1 x 8.1 x 1.3 inches 205 x 205 x 32 mm |
| Weight (Pound) | 1.73 pounds |
| Weight (Kilogram) | 785 grams |
| Power Input | DC Jack: 12V DC AC Adapter: AC Input 100V – 240V, DC Output 12V, 2.5A 802.3at PoE+ |
| Power Consumption | 23W (max.) |
| Operating Temperature | 32° – 104°F 0° – 40°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
| Package Content | AP One AX, Ceiling Mount Base (9/16” T-Rail) Ceiling Mount Base (15/16” T-Rail) Mounting Screw Set |
Deepdive
| Category | Details |
|---|---|
| Network | Bridge Mode Router (NAT) Mode Support for PPPoE, Static IP, DHCP Management VLAN Mesh Spanning Tree Protocol IPv6 passthrough |
| Radio | Multiple SSID Auto Channel Selection Transmit Power Adjustment Neighbor AP Detection |
| AP Security | Open WPA/WPA2/WPA3-Personal WPA/WPA2-Enterprise |
| Device Management | Web Administrative Interface InControl Cloud Management Peplink AP Controller SNMP v1, v2c and v3 |
| Client Management | Per SSID VLAN with QoS (802.1p/802.1q) Bandwidth Control MAC Address Filtering Layer 2 Client Isolation Limit on Max. Number of Client Per Client VLAN with RADIUS VLAN with VLAN Pool Bandwidth Control Multicast Filter IGMP Snooping/Multicast Enhancement |
| Captive Portal | by InControl |
Ordering Information
| Product Code | Description |
|---|---|
| APO-AX | AP One AX - 4x4 MIMO Wi-Fi 6 AP for Business, manageable by InControl 2. Simultaneous Dual-Band 802.11ax/ac/b/g/n |
Featured Add-on
| Product Code | Description |
|---|---|
| ACW-107 | 802.3af/at PoE Injector, compatible with MAX Hotspot and AP One AX |
| ACW-602 | 1x12V3A Power Supply, compatible with MAX HD2 and AP One AX |
| ECP-B-1Y | EssentialCare+ B (1-Year) |
| ECP-B-2Y | EssentialCare+ B (2-Year) |
| ECP-B-4Y | EssentialCare+ B (4-Year) |
| ICS-012 | 1-Year InControl 2 Subscription |
| ICS-024 | 2-Year InControl 2 Subscription |
| SVL-APO-AX-1Y | 1-Year EssentialCare for AP One AX |
| SVL-APO-AX-2Y | 2-Year EssentialCare for AP One AX |
