AP Pro AX
Feature Highlights
Built Like a Tank
IP67-rated enclosure ensures maximum durability and protection, safeguarding both the device and your connection in tough conditions.
Enterprise-Grade Roaming
Delivers seamless roaming and stable, high-speed Wi-Fi 6 connectivity—even in field deployments.
Mesh Capability
Supports Wi-Fi mesh networking for flexible placement and complete coverage, eliminating network blind spots.
Turnkey Captive Portals
Easily set up and customize guest networks with ready-to-use captive portals.
Peplink Ecosystem Integration
Seamlessly connects with other Peplink devices for unified management and enhanced network capabilities.
Ready for Demanding Deployments
Ideal for factories, construction sites, and harbor environments—engineered to perform in all weather and conditions.
Featured Solutions
Smart Cities
IoT
Industrial
Specification Details
| Ethernet Port | 1x Gigabit Ethernet |
| Wi-Fi Standard | Wi-Fi 6 |
| Data Rates | 2×2 MU-MIMO 2.4 GHz: up to 574Mbps 5 GHz: up to 1200Mbps |
| Recommended Concurrent Users Per Radio | |
| Multiple SSIDs | |
| Transmit Power | 2.4GHz: 24dBm 5GHz: 25dBm |

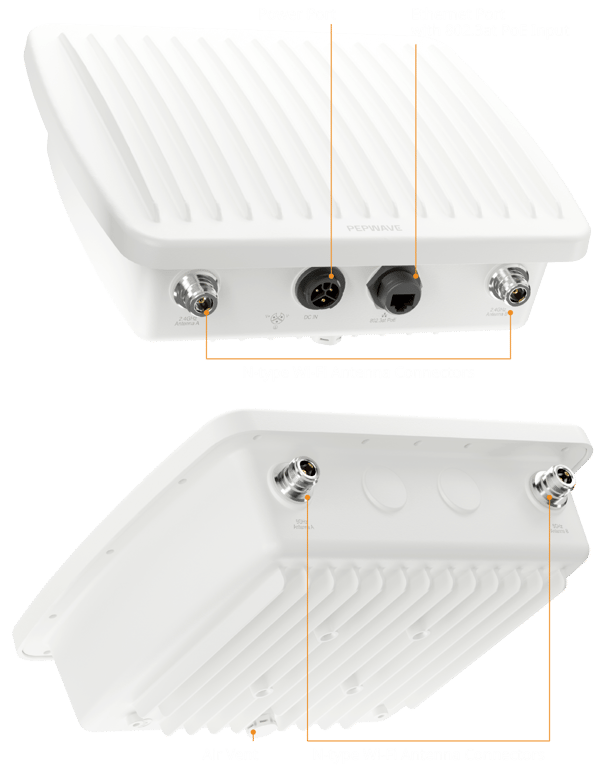

| Antenna | External Omni Directional Wi-Fi Antenna |
| Antenna Gain | 2x 8dBi for 2.4GHz 2x 8dBi for 5GHz |
| Antenna Connector | 4x N-Type Connectors |
| Enclosure | Waterproof IP67 Outdoor |
| Dimensions | 10.0 x 8.9 x 3.1 inches 255.1 x 225.1 x 78mm |
| Weight (Pound) | 4.44 pounds |
| Weight (Kilogram) | 2.02 kg |
| Power Input | Power Port: 12V DC 802.3at PoE+ |
| Power Consumption | 14.5W (max.) |
| Operating Temperature | -40° – 149°F -40° – 60°C" |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
| Package Content | 1x AP Pro AX (HW3) 1x Water Proof M25 Ethernet cable gland 1x Water Proof DC power plug 1x Water Proof cover for DC Power Connector 1x Mounting kit 1x M6 screw set 1x Wall screw with anchor set |
Deepdive
| Category | Details |
|---|---|
| Network | Bridge Mode Router (NAT) Mode Wireless Distribution System (WDS on 2.4GHz Only) Support for PPPoE, Static IP, DHCP Management VLAN (802.1p) Spanning Tree Protocol (802.1d) |
| Radio | Multiple SSID Auto Channel Selection Transmit Power Adjustment Neighbor AP Detection |
| AP Security | Open (No Encryption) Enhanced Open (OWE) WPA3 – Personal (AES:CCMP) WPA3 – Enterprise (AES:CCMP) WPA2/WPA3 – Personal (AES:CCMP) WPA2 – Personal (AES:CCMP) WPA2 – Enterprise (AES:CCMP) WPA/WPA2 – Personal (TKIP/AES: CCMP) WPA/WPA2 – Enterprise (TKIP/AES: CCMP) |
| Device Management | Web Administrative Interface InControl Cloud Management Peplink AP Controller SNMP v1, v2c and v3 |
| Client Management | Multicast Filter IGMP Snooping/Multicast Enhancemen |
| Client Management per SSID | VLAN with QoS (802.1p/802.1q) Bandwidth Control MAC Address Filtering Layer 2 Client Isolation Limit on Max. Number of Client |
| Client Management per Client | VLAN with RADIUS VLAN with VLAN Pool Bandwidth Control |
| Complete VPN Solution SpeedFusion VPN | Site-to-Site VPN 256-bit AES Encryption Pre-shared Key Authentication Dynamic Routing |
| Captive Portal | By InControl By Peplink AP Controller |
Ordering Information
| Product Code | Description |
|---|---|
| APP-AX-IP67 | AP Pro AX - 2x2 MU-MIMO Wi-Fi 6 AP, Simultaneous Dual-Band 802.11a/b/g/n/ac/ax, Industrial-grade in a waterproof and dust-tight IP67 outdoor enclosure. |
Featured Add-on
| Product Code | Description |
|---|---|
| ACW-107 | 802.3af/at PoE Injector. Compatible with AP One AX Series and AP Pro Series |
| ACW-825 | 2.4GHz & 5GHz Outdoor Wi-Fi Antenna Kit include 2x 2.4GHz and 2x 5GHz Outdoor Wi-Fi Omni Antenna (2x ACW-202 & 2x ACW-308) |
| ECP-D-1Y | EssentialCare+ D (1-Year) |
| ECP-D-2Y | EssentialCare+ D (2-Year) |
| ECP-D-4Y | EssentialCare+ D (4-Year) |
More Information in Datasheet
Installation Recommendation
Packing List Information
