Maritime 10
Feature Highlights
Designed for Maritime Applications
IP68 rated, durable omnidirectional antenna, with UV-stable housing, providing the best signal reception.
Designed for 5G
High performance in all low, mid and high bands for the best 5G connectivity at sea.
Easy installation

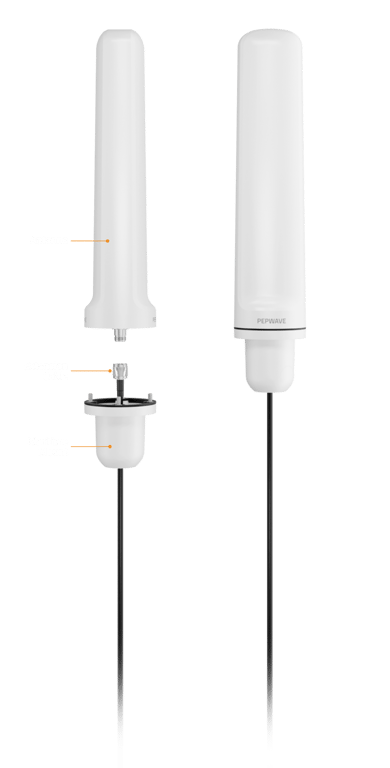

Supports standard marine 1\" 14 TPI thread mount and also has an L-shape mount for non standard installations.
Wide bandwidth
Wide frequency range (600-4200MHz) supporting LTE and 5G connectivity.
Featured Solutions
Maritime
Specification Details
| Cellular | Cellular Antenna elements | 1 element |
| Cellular | Cellular Antenna Peak Gain & Frequencies | 2.8dBi: 617-960MHz 8.2dBi: 1710-2700MHz 9.3dBi: 3400-4200MHz |
| Cellular | Cellular Antenna VSWR | <2.8: 617-960MHz <2.1: 1710-4200MHz |
| Cellular | Cellular Antenna Feed power handling | 10W |
| Cellular | Cellular Antenna Input impedance | 50 Ω |
| Cellular | Cellular Antenna Polarisation | Linear |
| Cellular | Cellular Antenna Termination | N-type female |
| Mounting | Mounting Supported types | Standard Maritime 1'' 14 TPI thread Pole and wall mounting Pole diameter: 1-2'' (25-50mm) |
| Mechanical | Product dimensions | (Diameter) 3.78'' / 96mm (Height) 19.04''/ 483.5mm |
| Mechanical | Packaged dimensions: | 26.3'' x 6.0'' x 6.1'' 668 x 153 x 155 mm |
| Mechanical | Enclosure material | UV stable PC |
| Mechanical | Antenna Color | White |
| Package contents | Package Contents | Maritime Antenna 10 Maritime mount set L-shape mount set |
| Environmental, compliance | IP rating | IP68 |
| Environmental, compliance | Operating temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Storage temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Compliance | ROHS, REACH, WEEE |
| Environmental, compliance | Salt Spray | MIL-STD 810F/ASTM B117 |
| Environmental, compliance | Winds Survivability | 100mph / 160km/h |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-MR-10-N-W | 1x LTE/5G, 600-4200MHz, IP68, N-type female, White |
