Maritime 40G
Feature Highlights
Designed for Maritime Applications

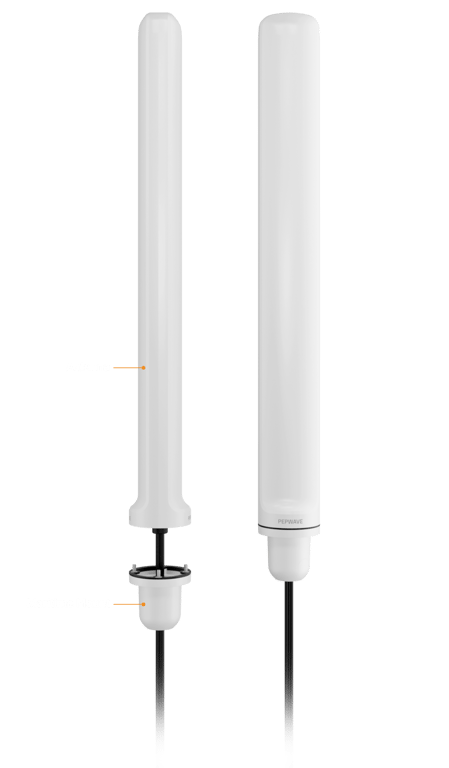

IP68 rated, durable and UV-stable housing an omnidirectional antenna for the best signal reception.
Designed for 5G
Optimal gain, 4x4 MIMO antenna configuration for the best performance for maritime installations.
Ultra-wide bandwidth
Wide frequency range (410-6000MHz) for supporting LTE and 5G connectivity.
Easy installation

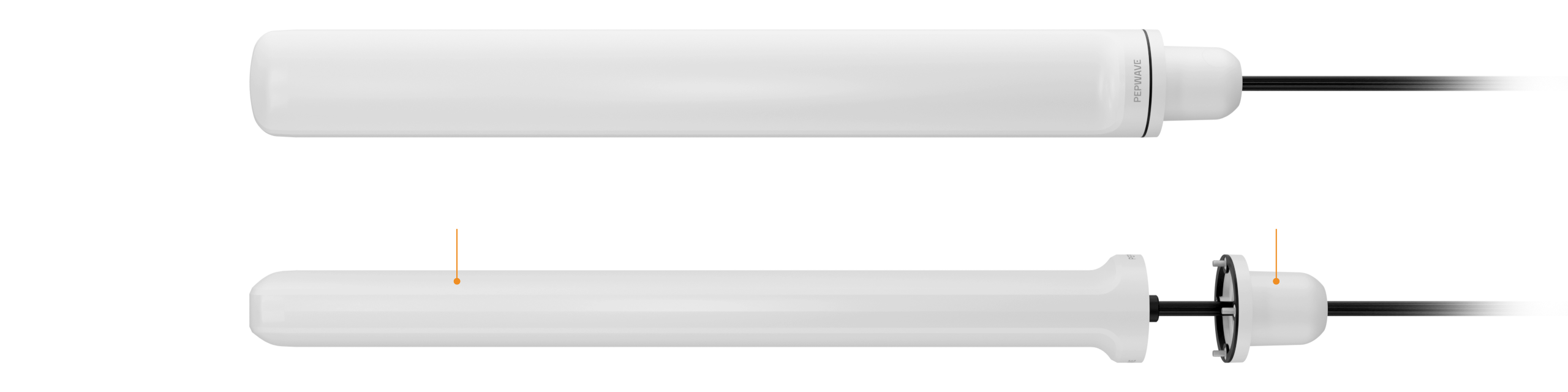

Supports standard maritime 1\" 14 TPI thread mount and also has an L-shape mount for non-standard installations.
Wi-Fi bands
The antenna is designed for cellular bands but also covers both 2.4 & 5GHz Wi-Fi frequencies. To use the antennas for Wi-Fi, you will require an SMA to RP-SMA adapter.
Featured Solutions
Specification Details
| Cellular | |
| Cellular Antenna elements | 4 elements |
| Cellular Antenna Peak Gain & Frequencies | 3.2dBi: 410-470MHz 3.8dBi: 617-960MHz 5.3dBi: 1710-2700MHz 6.5dBi: 3400-4200MHz 6.7dBi: 4900-6000MHz |
| Cellular Antenna VSWR | <3.5: 410-470MHz <3.0: 617-960MHz <2.5: 1710-6000MHz |
| Cellular Antenna Feed power handling | 10W |
| Cellular Antenna Input impedance | 50 Ω |
| Cellular Antenna Polarisation | Linear |
| GPS | |
| GPS Frequency range | 1561-1602 MHz |
| GPS Peak gain & Frequency | 0.5dBi@1575MHz 1.6dBi@1602MHz |
| GPS Antenna VSWR | < 2.5 |
| GPS Antenna Output return loss | 10dB max |
| GPS Antenna Gain: LNA | 28 ±3dB |
| GPS Antenna Noise figure | 1.5dB max at 3.3V |
| GPS Antenna Operating Voltage | 3.3V |
| GPS Antenna Power consumption | 8.5mA ±2.5 at 3.3V |
| Cellular Antenna Cable | |
| Cellular Antenna cable type | CFD-200 |
| Cellular Antenna Length | 6' 7" / 2m |
| Cellular Antenna Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| Cellular Antenna Diameter | 13/64" / 5.0mm |
| Cellular Antenna Jacket | Half matt PVC, UV resistant |
| Cellular Antenna Termination | SMA male |
| GPS Antenna Cable | |
| GPS Antenna Cable Type | RG-174 |
| GPS Antenna Cable Length | 6' 7" / 2m |
| GPS Antenna Cable Loss | 3.4 dB/m @ 1000 MHz 4.9 dB/m @ 1800 MHz |
| GPS Antenna Cable Diameter | 0.1" / 2.7mm |
| GPS Antenna Cable Jacket | Half matt PVC, UV resistant |
| GPS Antenna Cable Termination | SMA male |
| Mounting | |
| Mounting Supported types | Standard Maritime 1'' -14 TPI thread, L-shape mount |
| Mechanical | |
| Product dimensions | (Diameter) 3.78" / 96mm (Height) 34.39" / 873.5mm |
| Packaged dimensions: | 41.54" x 6.0" x 6.1" 1055 x 153 x 155mm |
| Enclosure material | UV stable PC |
| Antenna Color | White |
| Package contents | |
| Package Contents | Maritime Antenna 40G Maritime mount set L-shape mount set Deck mount (ACW-652) |
| Environmental, compliance | |
| IP rating | IP68 |
| Operating temperature | -40° - 176°F / -40° - 80°C |
| Storage temperature | -40° - 176°F / -40° - 80°C |
| Compliance | ROHS, REACH, WEEE |
| Salt Spray | MIL-STD 810F/ASTM B117 |
| Winds Survivability | 100mph / 160km/h |
