Mobility 02
Feature Highlights
Dual-Band Wi-Fi
2x2 MIMO Wi-Fi antenna supporting 2.4 GHz and 4.9–6 GHz bands.
Reliable Build
Durable, UV-stable housing for long-term use.
Weatherproof
IP68 rating for protection in all environments.

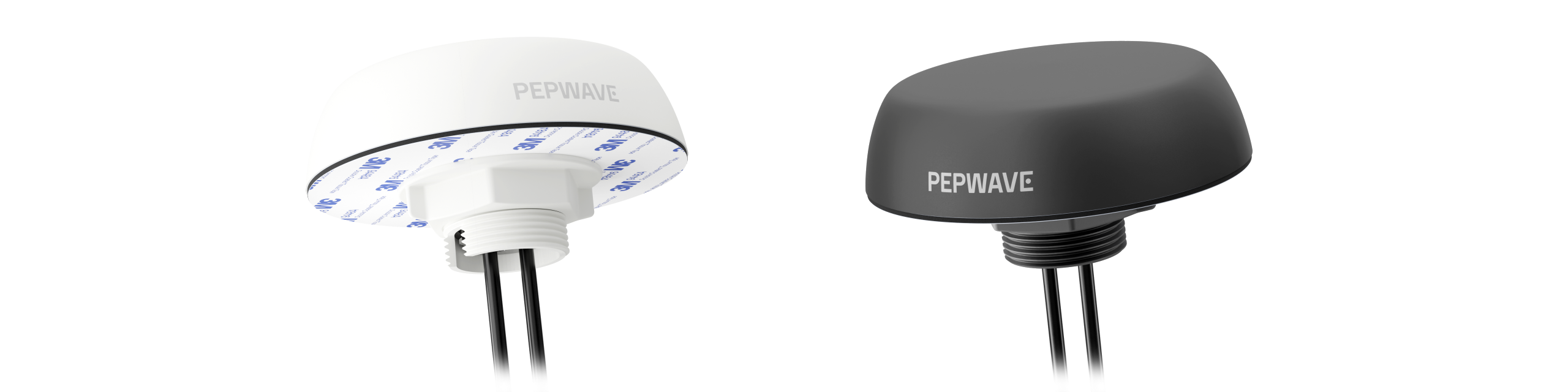

Color Options
Available in black or white.
Featured Solutions
Public Safety
Transportation
Specification Details
| Wi-Fi | Wi-Fi Antenna elements | 2 elements |
| Wi-Fi | Wi-Fi Antenna Peak Gain & Frequencies | 6.2dBi: 2400-2500 MHz 7.3dBi: 4900-6000 MHz |
| Wi-Fi | Wi-Fi Antenna VSWR | < 2.0 |
| Wi-Fi | Wi-Fi Antenna Feed power handling | 10W |
| Wi-Fi | Wi-Fi Antenna Input impedance | 50 Ω |
| Wi-Fi | Wi-Fi Antenna Polarisation | Linear |
| WiFi Antenna Cable | Wi-Fi Antenna cable type | CFD-200 |
| WiFi Antenna Cable | Wi-Fi Antenna Length | 6' 7" / 2m |
| WiFi Antenna Cable | Wi-Fi Antenna Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| WiFi Antenna Cable | Wi-Fi Antenna Diameter | 0.2 in. / 5.0 mm |
| WiFi Antenna Cable | Wi-Fi Antenna Jacket | Half matt PVC, UV resistant |
| WiFi Antenna Cable | Wi-Fi Antenna Termination | RP-SMA male |
| Mounting | Mounting Supported types | Panel, wall, pole |
| Mounting | Mounting hole | 1 11/16" / 43mm |
| Mounting | Max mounting panel thickness | 19/32" / 15mm |
| Mechanical | Product dimensions | 1.42 in. / 36 mm - Height (spigot not included) 5.12 in. / 130 mm - Diameter |
| Mechanical | Packaged dimensions: | 8.90"x8.46"x4.29" / 226x215x109mm |
| Mechanical | Enclosure material | UV stable PC+ABS |
| Mechanical | Antenna Color | White or Black |
| Package contents | Package Contents | Mobility 02 Mounting bracket Wall/pole mount Double sided 3M adhesive pad -Diameter: 5.08 in. / 129 mm -Thickness: 0.08 in. / 2 mm |
| Environmental, compliance | IP rating | IP68 |
| Environmental, compliance | Operating temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Storage temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Compliance | ROHS, REACH, WEEE |
| Environmental, compliance | Enclosure flammability | UL 94 HB |
| Environmental, compliance | Cable flammability | UL 758 (VW-1) |
| Environmental, compliance | UV resistance | UL 746C (F1 long-term UV exposure) |
| Environmental, compliance | Salt Spray | MIL-STD 810F/ASTM B117 |
| Environmental, compliance | Winds Survivability | 137mph (220km/h) |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-MB-02-R-W-6 | 2xWi-Fi 2400-6000MHz, IP68, RP-SMA male, White, 6.5ft / 2m |
| ANT-MB-02-R-B-6 | 2xWi-Fi 2400-6000MHz, IP68, RP-SMA male, Black, 6.5ft / 2m |
Featured Add-on
| Product Code | Descriptions |
|---|---|
| ACW-651 | 1" 14 TPI female to Mobility thread for deck mount |
| ACW-653 | Maritime 1 1/4" 11TPI male adapter |
More Information in Datasheet
Technical Drawing
Wi-Fi Antenna Performance
Wi-Fi Radiation Pattern
Installation Recommendation
