Mobility 82G
Feature Highlights
Built for 5G
Omni-directional 8x8 MIMO mobile antenna designed for maximum 5G performance.
Ultra-Wide Bandwidth
Covers 600–6000 MHz for seamless LTE and 5G connectivity across diverse environments.
Robust Design
Low-profile, durable housing with IP67 rating for reliable outdoor operation.

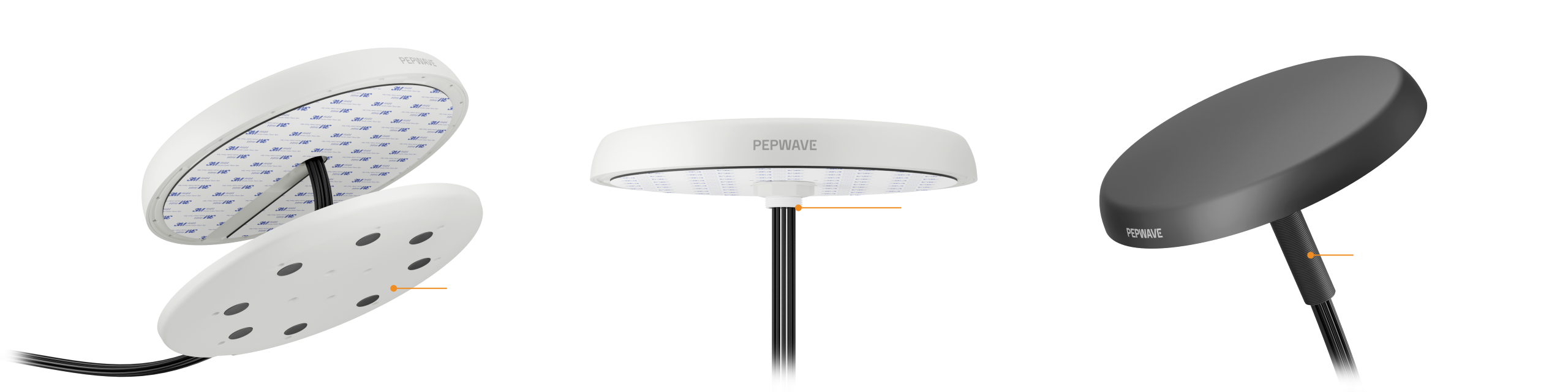

Easy Installation
Supports surface and panel mounting for flexible deployment.
Flexible Applications
Ideal for public safety, mission-critical connectivity, mobile healthcare, and transportation networks.
Featured Solutions
Public Safety
Transportation
Specification Details
| Cellular | Cellular Antenna elements | 8 elements |
| Cellular | Cellular Antenna Peak Gain & Frequencies | 5.4dBi: 617-960MHz 7.5dBi: 1400-2700MHz 8.1dBi: 3400-4200MHz 8.7dBi: 5000-6000MHz |
| Cellular | Cellular Antenna VSWR | < 2.0 over 95% of the band |
| Cellular | Cellular Antenna Feed power handling | 10W |
| Cellular | Cellular Antenna Input impedance | 50 Ω |
| Cellular | Cellular Antenna Polarisation | Linear |
| Wi-Fi | Wi-Fi Antenna elements | 2 elements |
| Wi-Fi | Wi-Fi Antenna Peak Gain & Frequencies | 6.0dBi: 2400-2500MHz 7.4dBi: 5000-6000MHz |
| Wi-Fi | Wi-Fi Antenna VSWR | < 2.0 |
| Wi-Fi | Wi-Fi Antenna Feed power handling | 10W |
| Wi-Fi | Wi-Fi Antenna Input impedance | 50 Ω |
| Wi-Fi | Wi-Fi Antenna Polarisation | Linear |
| GPS | GPS Frequency range | 1575-1602 MHz |
| GPS | GPS Peak gain & Frequency | 1.2 dBiC: 1575MHz 2.0 dBiC: 1602MHz |
| GPS | GPS Antenna VSWR | < 1.6 |
| GPS | GPS Antenna Output return loss | -10dB max |
| GPS | GPS Antenna Gain: LNA | 29 ± 3 dB |
| GPS | GPS Antenna Operating Voltage | 3.3 V |
| GPS | GPS Antenna Power consumption | 6 ±2 mA at 3.3 V |
| Cellular Antenna Cable | Cellular Antenna cable type | LMR-200 |
| Cellular Antenna Cable | Cellular Antenna Length | 6.5ft / 2m |
| Cellular Antenna Cable | Cellular Antenna Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| Cellular Antenna Cable | Cellular Antenna Diameter | 0.2 in. / 5.0 mm |
| Cellular Antenna Cable | Cellular Antenna Jacket | Half matt PVC, UV resistant |
| Cellular Antenna Cable | Cellular Antenna Termination | QMA male, SMA male |
| WiFi Antenna Cable | Wi-Fi Antenna cable type | CFD-200 |
| WiFi Antenna Cable | Wi-Fi Antenna Length | 6.5ft / 2m |
| WiFi Antenna Cable | Wi-Fi Antenna Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| WiFi Antenna Cable | Wi-Fi Antenna Diameter | 0.2 in. / 5.0 mm |
| WiFi Antenna Cable | Wi-Fi Antenna Jacket | Half matt PVC, UV resistant |
| WiFi Antenna Cable | Wi-Fi Antenna Termination | RP-SMA male |
| GPS Antenna Cable | GPS Antenna Cable Type | RG-174 |
| GPS Antenna Cable | GPS Antenna Cable Length | 6.5ft / 2m |
| GPS Antenna Cable | GPS Antenna Cable Loss | 3.4 dB/m @ 1000 MHz 4.9 dB/m @ 1800 MHz |
| GPS Antenna Cable | GPS Antenna Cable Diameter | 0.1" / 2.7mm |
| GPS Antenna Cable | GPS Antenna Cable Jacket | Half matt PVC, UV resistant |
| GPS Antenna Cable | GPS Antenna Cable Termination | QMA male, SMA male |
| Mounting | Mounting Supported types | Panel, surface (with additional mount) magentic (with additional mount) |
| Mounting | Mounting hole | 1.7" / 43mm |
| Mounting | Max mounting panel thickness | up to 6.7" / 170mm |
| Mechanical | Product dimensions | 2.46” / 62.5 mm - Height (spigot not included) 16.83” / 427.4 mm - Diameter |
| Mechanical | Packaged dimensions: | 20.16" x 20.09" x 9.06" 512x510x230mm |
| Mechanical | Enclosure material | UV stable PC |
| Mechanical | Antenna Color | White |

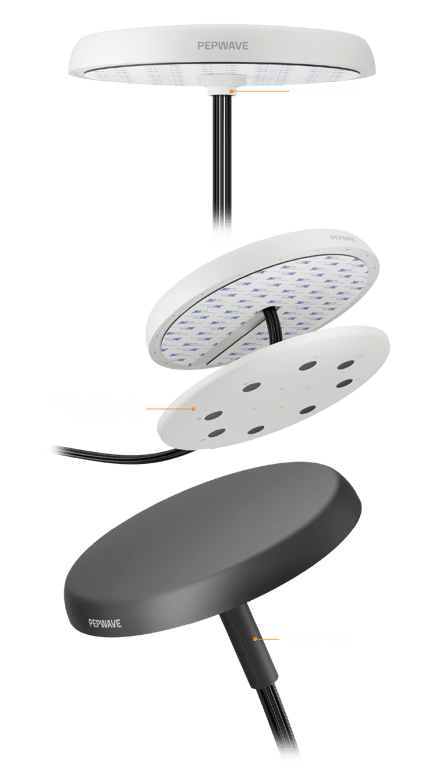

| Package contents | Package Contents | Mobility 82G Long and short thread Double sided 3M adhesive pad - Diameter: 15.2” / 386 mm - Thickness: 0.08” / 2 mm |
| Environmental, compliance | IP rating | IP67 |
| Environmental, compliance | Operating temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Storage temperature | -40° - 176°F / -40° - 80°C |
| Environmental, compliance | Compliance | ROHS, REACH, WEEE |
| Environmental, compliance | Enclosure flammability | UL 94 HB |
| Environmental, compliance | Cable flammability | UL 758 (VW-1) |
| Environmental, compliance | UV resistance | UL 746C (F1 long-term UV exposure) |
| Environmental, compliance | Salt Spray | MIL-STD 810F/ASTM B117 |
| Environmental, compliance | Winds Survivability | 137mph (220km/h) |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-MB-82G-S-W-6 | 8x LTE/5G, 2x Wi-Fi, 1xGPS 600-6000MHz, IP67, SMA (Cellular, GPS), RP-SMA (Wi-Fi), White, 6.5 ft / 2m |
| ANT-MB-82G-S-B-6 | 8x LTE/5G, 2x Wi-Fi, 1xGPS 600-6000MHz, IP67, SMA (Cellular, GPS), RP-SMA (Wi-Fi), Black, 6.5ft / 2m |
| ANT-MB-82G-Q-W-6 | 8x LTE/5G, 2x Wi-Fi, 1xGPS 600-6000MHz, IP67, QMA (Cellular, GPS), RP-SMA (Wi-Fi), White, 6.5 ft / 2m |
Featured Add-on
| Product Code | Descriptions |
|---|---|
| ACW-667 | Surface mount, White |
| ACW-667-B | Surface mount, Black |
| ACW-668 | Surface mount with magnets |
| ACW-668-B | Surface mount with magnets, Black |
More Information in Datasheet
Technical Drawing
Cellular Antenna Performance
Wi-Fi Antenna Performance
Cellular & Wi-Fi Antenna Performance
Radiation Pattern
Installation Recommendation
