SIM Injector mini
Feature Highlights

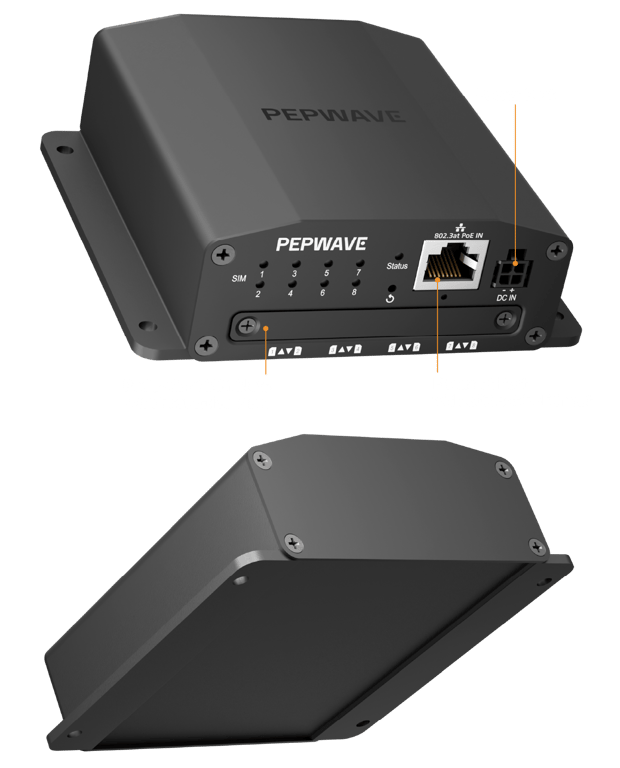

Remote SIM Management
Integrate and manage up to 8 SIM cards remotely, eliminating the need for physical access—ideal for hard-to-reach installations.
Single-Cable Simplicity
Powered through PoE using one Ethernet cable—no nearby power outlet required. Optional Microfit connector offers added power flexibility.
Affordable & Rugged Design
Built tough, easy to use, and cost-effective—providing reliable, accessible SIM management without added costs.
Featured Solutions
Smart Cities
Event
Transportation
Resources
Specification Details
| SIM Slots | 8x Active SIM Slots, Nano-SIM (4FF) |
| LAN Interface | 1x 10/100 Ethernet, PoE 802.3at Support |
| Power Input | DC Jack: 10-30V / 802.3at PoE |
| Dimensions | 3.9 x 4.2 x 1.4 inches / 100 x 107 x 35 mm |
| Weight | 0.54 pound / 0.244 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Package Content | 1x SIM Injector Mini 1x 12V 2A 4 Pin Power Supply (ACW-632) |
Ordering Information
| Product Code | Description |
|---|---|
| SIM-MINI-8-1E | SIM Injector Mini |
Featured Add-on
| Product Code | Description |
|---|---|
| SVL-SIM-MINI-1Y | EssectialCare (1-Year) for SIM Injector Mini |
| SVL-SIM-MINI-2Y | EssectialCare (2-Year) for SIM Injector Mini |
| ECP-C-1Y | EssentialCare+ C (1-Year) |
| ECP-C-2Y | EssentialCare+ C (2-Year) |
| ECP-C-4Y | EssentialCare+ C (4-Year) |
More Information in Datasheet
Technical Drawing
Cellular Antenna Performance
Wi-Fi Antenna Performance
Cellular & Wi-Fi Antenna Performance
Radiation Pattern
Installation Recommendation
Packing List Information
